XiTan Jet Grouting Crawler Engineering Drilling Rig

Feature:

1. Adopt full hydraulic control and easy and flexible operation. Crawler chassis loading, easy and quick to walk and move into position. Long power head stroke, reducing auxiliary time;

2. Extra-long power head stroke, within 6.5m, no need to change the connecting drill pipe, prolong the life of drilling tools, and Reduce auxiliary personnel and auxiliary time;

3. Direct-acting load feedback fine-tuning variable hydraulic system, power varies with load, high efficiency, low energy consumption;

4. A special valve for friction positioning is used in rotary, and its characteristics fully meet the requirements of the rotary jet process;

5. The wide range of variable speeds of the power head can meet the requirements of various strata and different drilling processes;

6. With rotary bearing, hole position can be turned to track side when needed;

7. Compact structure, centralized operation, convenient and safe;

8. Equipped with vertical drill tower, power head rotation, and lifting speed display device;

Application:

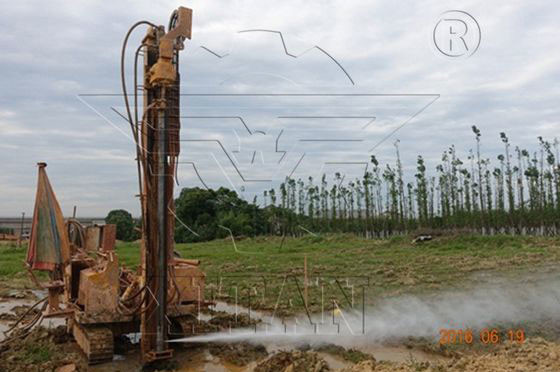

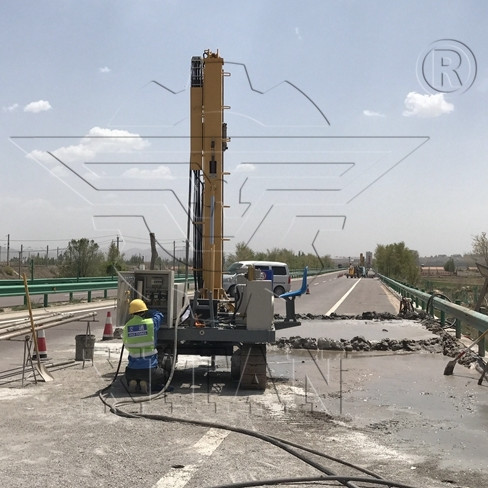

It is suitable for the jet grouting construction of railroad, highway, bridge, dam foundations and various industrial and civil building foundation treatment and reinforcement; anchoring project of foundation pit support; with the air compressor and pneumatic submersible hammer supporting can follow the tube drilling, can carry out general rotary jet (swing jet, fixed jet) engineering construction, but also for shallow hole drilling and engineering survey drilling and other engineering construction.

Matching Drill Tools:

1. The single pipe drilling-spraying integration method, with a three-wing bit or one-shaped bit at the front end and Ф42 or Ф50 drill pipe; is suitable for high-speed drilling in soil and sand layers.

2. Rotary jet anchor cable method, with 65 lock bolt propeller and anchor drill pipe, suitable for anchor cable reinforcement.

Optional Parts:

1. XiTan Jet Grouting Crawler Engineering Drilling Rig is suitable for single, double, and triple pipe rotary jet, swing jet, fixed jet, and other methods.

2. XiTan Jet Grouting Crawler Engineering Drilling Rig can be used together with XTB series foundation strengthening pump and automatic mixer.

3. XiTan Jet Grouting Crawler Engineering Drilling Rig is combined with XiTian 5G intelligent cloud platform and diesel power unit.

Technical Data:

  Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. Altogether 12 categories of products based on jet grouting technology are widely applied in ground improvement and modification with excellent performance.

   We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m². 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation. Through continuous research of advanced grouting technology such as dual high-pressure RJP and multi-tube jet grouting, have occupied the high-end technology in jet grouting engineering equipment field in China and reached international standards. 6 patents about jet grouting drilling rigs had been obtained. Recently developed the first XPS-15 horizontal jet grouting drilling rig for tunneling in China with absolute advantages, it was praised by many experts.

  Kinds of geotechnical drilling rigs for soft foundation, a professional mechanical engineer team, and 24 hours feedback services will best meet and fulfill your needs. If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with you.
