Electric/Diesel Anchor Drilling Machine for Slope Supporting in
Kyrgyzstan for Sale
Feature of Electric/Diesel Anchor Drilling Machine for Slope Supporting in
Kyrgyzstan for Sale:
1. Simple system structure, easy maintenance, and low cost.
2. The maximum horizontal lifting height is 3.3 meters and the
minimum is 1.8 meters, and the Electric/Diesel Anchor Drilling
Machine for Slope Supporting in Kyrgyzstan for Sale can construct double rows of anchor cables at one time.
3. Selective power ratio, effectively reduces power consumption and
waste.
4. The overall structure is simpler, the layout is more reasonable,
and the operation is easy to understand and humanized.
5. Electric/Diesel Anchor Drilling Machine for Slope Supporting in
Kyrgyzstan for Sale can be equipped with a rig crane, which can
effectively reduce the labor intensity of workers and reduce labor
costs.
6. The frame slewing adopts a large diameter slewing bearing, so
the hole position can be easily turned to the side of the track
manually when needed.
7. Equipped with a single gripper at the hole and a special
unloading tool, it is more convenient to dismantle the drill pipe. Electric/Diesel Anchor Drilling Machine for Slope Supporting in
Kyrgyzstan for Sale can also be equipped with double grippers, which reduces the labor
intensity and operation time of drill pipe loading and unloading.
Application of Electric/Diesel Anchor Drilling Machine for Slope
Supporting in Kyrgyzstan for Sale:
Electric/Diesel Anchor Drilling Machine for Slope Supporting in
Kyrgyzstan for Sale is a fully hydraulic crawler drilling rig that can meet the
requirements of various construction techniques by integrating deep
foundation pit slope anchoring, rotary jet, and waterfall. This
Electric/Diesel Anchor Drilling Machine for Slope Supporting in
Kyrgyzstan for Sale is developed by our company after long-term
market research and customer communication to meet the complex deep
foundation pit anchor support construction conditions, with the
deep foundation pit slope support process as the main, rotary jet
construction as a supplement. Electric/Diesel Anchor Drilling
Machine for Slope Supporting in Kyrgyzstan for Sale has the characteristics of good mobility, a wide range of operating
holes, high efficiency, good drilling quality, low pollution, etc.
Technical Data:
| Mode | GM-5S |
| Motor | (55+11)kW |
| Weight | 6.5t |
| Size | Transportation(mm) | 5000×2300×2000 |
| Speed | 1.5km/h |
| Diameter Pile |
| Max Diameter | Max 2m |
| Max Depth | 120m |
| Power Head |
| Feeding Stroke | 3.4m |
| Rotation Speed | Low 0-10(r/min) | High 0-140(r/min) |
| Lifting Power | 65kN |
| Torque | 8000N.m |
| Borehole |
| Diameter | (Φ50-Φ250)mm |
| Depth | (100-120)m |
| Drill Pipe Diameter | Φ50mm, Φ73mm, Φ76mm, Φ89mm |
| Column |
| Sliding Stroke | 900mm |
| Pitch Angle of Column | 90°~ -10° |

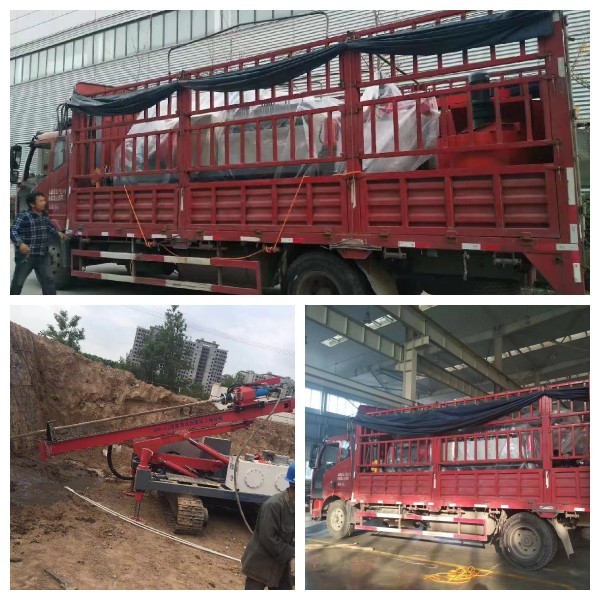

Product Packing:
Company Profile:
Shannxi Xitan Geological Equipment Co., Ltd was established in 1958
as a specialized drilling rig manufacturer for more than 60 years.
High-pressure jet grouting rigs, multifunctional engineering
drilling rigs, anchor drilling rigs, and environmental drill rigs
are our featured products with advanced technology, and other
grouting equipment such as grouting pumps, and auto grout mixing
stations are low energy consumption, environmental protection, and
cost-effective. We are a High-pressure Jet Grouting Engineering
Technology Center and National High-tec Enterprise in ancient
City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150
million yuan has been invested in production line building and
technological innovation.
Factory Show:
RFQ:
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing
experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll
show you the photos of the products and packages before you pay the
balance.
3. How about your delivery time?
Ans: Except GY60/80 anchor drilling rig is not in stock, the common
drilling rig in stock could be delivered in one week after getting
your full payment.
Customize drilling rig will take 15-45 days after receiving your
advance payment. The specific delivery depends on the items and the
quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable
operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our
inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will
supply you with professional guidance. And we provide videos for
machine installation and operation.
If you need, we can send our engineers to your worksite and provide
the training for your staff.
