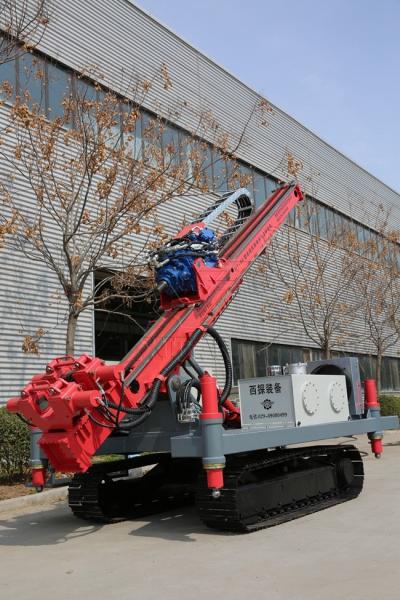

Casing 89mm 1.5m/Min Anchor Drilling Rig For Bridges Railways

Application:
They are full hydraulic anchoring machines, it is used for supporting and protecting basic/medium pits, ensuring displacement of buildings, and avoiding geological hazard. It can move fast with the crawler, automatically disassemble rods and casing, reducing labour works and improving efficiency.

Short Introduction:

GY-60(80) crawler type full hydraulic engineering anchor drill rig is used for embankment reinforcement of industrial construction such as railways, highways, bridges, roadbeds, dam foundations, etc., and foundation strengthening of civil buildings such as water-proof and leak-proofing works, soft foundation treatment, and geological disasters control and the anchorage against the building displacement.

Carried out with PDC bits, it can be rotary drilling in rock layers.

In the rock layer, the special crown button drill bit can be drilling holes at high speed.

On pebble layers, matching with following pipe drilling tools, it meets casing drill.

Equipped with a hydraulic impact system, it can meet the foundation construction work such as impacting and breaking rock and hole formation, fluid discharge, underground micro-pile, drilling for roof bolt or anchor cable, geological prospecting, geothermal hole formation, and slope supporting.

After changing the power head, it has a rotary jet grouting function (swing jet grouting, fixed jet grouting), which can also carry out advanced pipe-shed supporting and geologic forecasting in the tunneling.

Technical Data:

  Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. Altogether 12 categories of products based on jet grouting technology are widely applied in ground improvement and modification with excellent performance.

   We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m². 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation. Through continuous research of advanced grouting technology such as dual high-pressure RJP and multi-tube jet grouting, have occupied the high-end technology in jet grouting engineering equipment field in China and reached international standards. 6 patents about jet grouting drilling rigs had been obtained. Recently developed the first XPS-15 horizontal jet grouting drilling rig for tunneling in China with absolute advantages, it was praised by many experts.

  Kinds of geotechnical drilling rigs for soft foundation, a professional mechanical engineer team, and 24 hours feedback services will best meet and fulfill your needs. If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with you.
