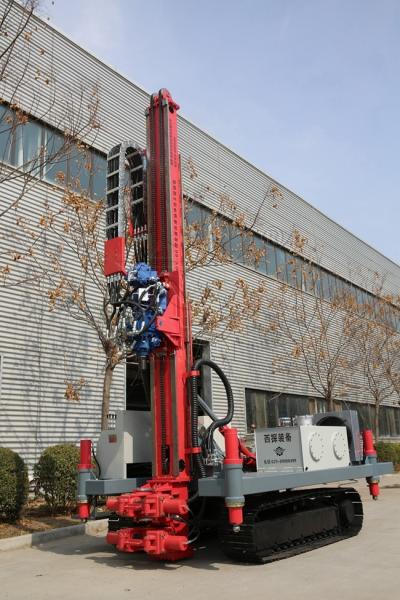

GY60 GY80 42mm Crawler Mobile Rotary Anchor Drilling Rig
Short Introduction:
GY-60(80) crawler type full hydraulic engineering anchor drill rig
is used for embankment reinforcement of industrial construction
such as railways, highways, bridges, roadbeds, dam foundations,
etc., and foundation strengthening of civil buildings such as
water-proof and leak-proofing works, soft foundation treatment, and
geological disasters control and the anchorage against the building
displacement.
Carried out with PDC bits, it can be rotary drilling in rock
layers.
In the rock layer, the special crown button drill bit can be
drilling holes at high speed.
On pebble layers, matching with following pipe drilling tools, it
meets casing drill.
Equipped with a hydraulic impact system, it can meet the foundation
construction work such as impacting and breaking rock and hole
formation, fluid discharge, underground micro-pile, drilling for
roof bolt or anchor cable, geological prospecting, geothermal hole
formation, and slope supporting.
After changing the power head, it has a rotary jet grouting
function (swing jet grouting, fixed jet grouting), which can also
carry out advanced pipe-shed supporting and geologic forecasting in
the tunneling.
Technical Data:
| Mode | GY-60/80 |
| Motor | (55+30)kW |
| Weight | 7.9t |
| Size | Working(mm) | 3750×2450×5450 |
| Transmission(mm) | 5450×2300×2250 |
| Speed | 1.5km/h |
| Climbing Capacity | 20° |
| Diameter Pile |
| Max Diameter | Max 2m |
| Max Depth | 200m |
| Power Head |
| Feeding Stroke | 3.4m |
| Rotation Speed | 0～92rpm (GY-60) |
| 0～64rpm(GY-80) |
| Lifting Power | 50kN |
| Torque | 11500 N.m,16680 N.m(GY-80) |
| Borehole |
| Diameter | Ф42mm | Ф50mm | Ф73mm | Ф89mm |
| Inclination | 0°～90° |
| Column |
| Expansion | 900mm |
| Hydraulic System |
| Pressure | Main Pump | 20MPa |
| Sub-pump | 20MPa |
| Sub-pump | 20MPa |
Main Features:
1. Do rob drilling, casing drilling, casing, and rob drilling. When
rotary jet grouting, it can be applied for single-tube,
double-tube, triple-tube jet grouting, and others.
2. Direct-acting load feedback and fine-tuning variable hydraulic
system, power changes with load, high efficiency, low energy
consumption.
3. The main components of the drilling rig hydraulic system adopt
from well-known brands, the system is stable and long service life.
4. The drilling rig has a crawler self-propelled function for
convenient and quick moving.
5. Equipped with a rotation, the hole position can be transferred
to the side of the crawler when necessary.
6. Compact structure, centralized operation, convenient and safe.
7. It adopts a full hydraulic power head drive, infinitely variable
speeds, high drilling efficiency, and low labor intensity.
8. It benefits parts reduced, reliable quality, and easy
maintenance that the power head adopts hydraulic variable speed
mode with high and low gears, which can meet the requirements of
various formations and different drilling techniques. The hydraulic
rear top hammer impact function is added, and the impact and
rotation function is integrated as well.
Not only can the drilling rig quickly drill into the general rock
formation, but also drill into the gravel layer and cobblestone
layer.
Anti-drive device: When the drilling rig is stuck during drilling,
the drill pipe can be quickly taken out by the anti-drive device
hitting.
Frequency adjustment: There is a manual frequency adjustment device
on the cylinder of the hydraulic impact drill, which can be
adjusted under different geological conditions.
