Electric 50mm Diameter 100m Depth Anchor Drilling Rig
Features:
1. Simple structure, convenient maintenance, and low consumption.
2. The maximum horizontal lifting height is 3.5 meters and the
minimum is 1.8 meters. double-row anchor cables drill in one go.
3. Optional power, effectively reducing power consumption and
waste.
4. Simple overall structure, reasonable layout, and easy operation.
5. Optional crane-mounted function, reduce the labor intensity,
save cost.
Product Description:

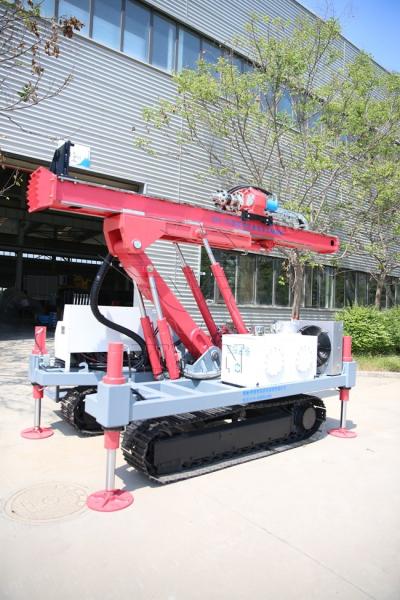

GM-5S horizontal lift multifunctional anchor drill rig is a fully
hydraulic crawler type that integrates deep foundation pit slope
anchoring, rotary jet grouting, and dewatering, which can meet the
requirements of various construction techniques. This is an
engineering drilling rig developed by our company after long-term
market research and customer exchanges, aiming at anchor support
ingredients under complex deep foundation construction conditions,
mainly for deep foundation slope supporting technology and jet
grouting technique as the auxiliary. It has the characteristics of
good mobility, a wide range of operating holes, high efficiency,
good drilling quality, and low pollution.
Technical Data:
| Mode | GM-5S |
| Motor | (55+11)kW |
| Weight | 6.5t |
| Size | Transportation(mm) | 5000×2300×2000 |
| Speed | 1.5km/h |
| Diameter Pile |
| Max Diameter | Max 2m |
| Max Depth | 120m |
| Power Head |
| Feeding Stroke | 3.4m |
| Rotation Speed | Low 0-10(r/min) | High 0-140(r/min) |
| Lifting Power | 65kN |
| Torque | 8000N.m |
| Borehole |
| Diameter | (Φ50-Φ250)mm |
| Depth | (100-120)m |
| Drill Pipe Diameter | Φ50mm,Φ73mm,Φ76mm,Φ89mm |
| Column |
| Sliding Stroke | 900mm |
| Pitch Angle of Column | 90°~ -10° |

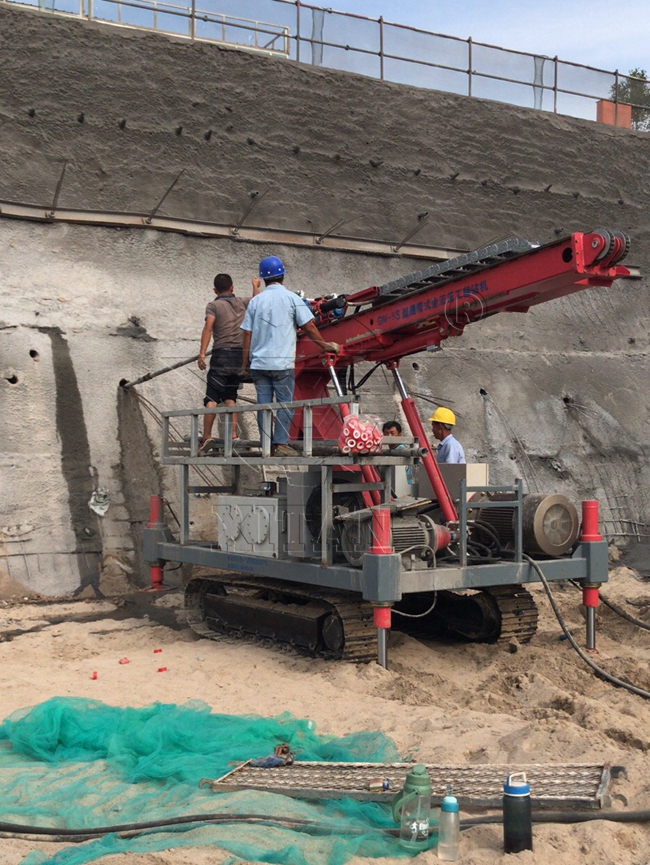

Application:
1. Three-wing drill bit drilling, mud slag discharging, suitable
for high-speed drilling in soil layer and other layers.
2. Small diameter twist drilling for soil layer (≧200mm).
3. Pneumatic DTH hammer drill, air slag discharge. Suitable for the
construction of rock formations and broken layers.
4. Casing drilling.
5. Composite drilling of casing and drill pipe.
6. Single, double, and triple rotary jet grouting and directional
jet grouting.
