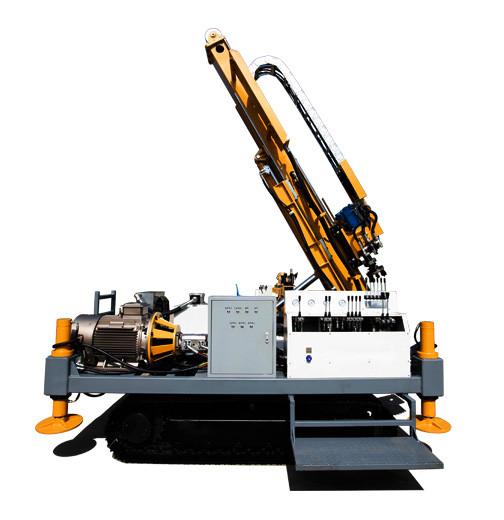

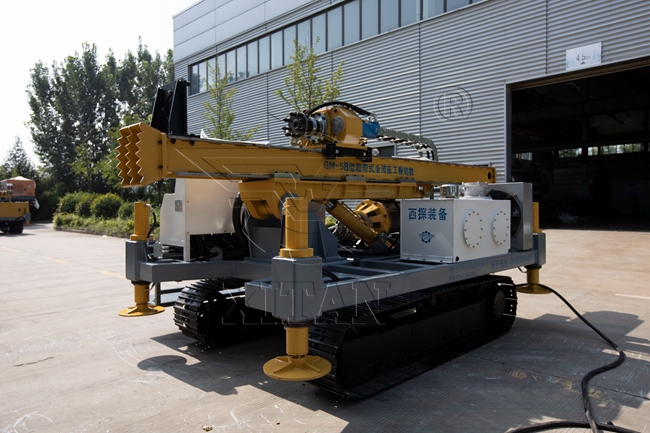

GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig 01

Application

1,Urban deep foundation pit support, soil nail wall support, railway and road slope support.

2,Anti-floating anchor rod, thin underground continuous wall and anti-seepage wall in foundation treatment.

3,Pipe shed grouting and water stop grouting in tunnel engineering.

4,Construction of rock blasting holes for roads, mines, hydropower dams, etc.

5,Foundation reinforcement of various industrial and civil buildings such as railways, highways, bridges, roadbeds and dam foundations, water-blocking and sealing works, soft foundation treatment and geological disaster management.

6,Engineering application of bolt drilling, down-the-hole drilling, casing drilling and drill pipe casing composite drilling.

7,Single-tube and double-tube construction for general rotary jet engineering

Main feature

1, Adopt full hydraulic power head transmission, infinitely variable speed, high drilling efficiency, low labor intensity.

2, The hydraulic system of drilling rig is stable and reliable with long service life.

3, The power head adopts hydraulic variable-speed mode with high and low grades, which can meet the requirements of various formations and different drilling techniques.

4. The drill has the function of crawler walking by itself, and the equipment can be moved easily and quickly.

5. Equipped with a slewing mechanism, the hole can be manually transferred to the side of the track when needed.

6, Compact structure, centralized operation, convenient and safe.

7.The column can be stretched back and forth to meet the bolt construction requirements.

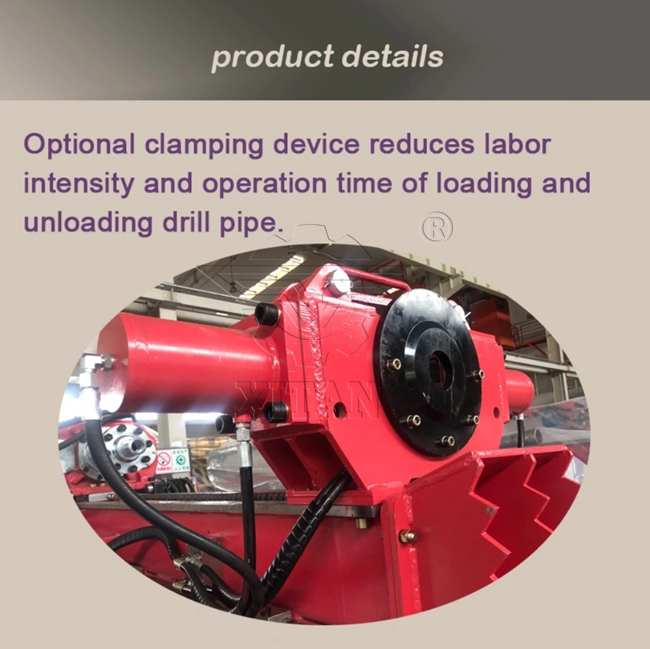

8,Optional clamping device reduces labor intensity and operation time of loading and unloading drill pipe.

Technical Parameter

  Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. Altogether 12 categories of products based on jet grouting technology are widely applied in ground improvement and modification with excellent performance.

   We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m². 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation. Through continuous research of advanced grouting technology such as dual high-pressure RJP and multi-tube jet grouting, have occupied the high-end technology in jet grouting engineering equipment field in China and reached international standards. 6 patents about jet grouting drilling rigs had been obtained. Recently developed the first XPS-15 horizontal jet grouting drilling rig for tunneling in China with absolute advantages, it was praised by many experts.

  Kinds of geotechnical drilling rigs for soft foundation, a professional mechanical engineer team, and 24 hours feedback services will best meet and fulfill your needs. If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with you.
