GL 6000S Multipurpose 200m Horizontal Directional Drilling Rig

Construction Scope of Drilling Rig:

1. Suitable for high-speed drilling in soil, sand, and other strata, mud slag discharge; three-wing drill bit, or horseshoe-shaped drill bit drilling.

2. Air down-the-hole hammer drilling and air slag discharge in rock formations and broken layers.

3. Hole bottom hydraulic hammer drilling and mud discharge slag in broken layer, sand egg layer, etc.

4. Drill robe or rob and casing combined drilling.

6. Meet single-tube, double-tube, triple-tube jet grouting drilling, and swing or fixed jet grouting technique requirements, (customer optional).

7. Equipment with the high-pressure grouting pump, mud mixer, rotary or swing jet drilling tool, deflector, nozzle, three-wing drill bit, horseshoe-shape drill bit, and PDC drill bit of Xi Tan Equipment Company.

8. Reducing joints is good for seamlessly connecting with domestic and foreign drilling tools.

Application:

It can be appropriate for carbide bits drilling, rotation drilling, auger drilling, pneumatic DTH hammer drilling, and following-up casing drilling. Besides, extensional functions such as rotary jet grouting, swivel jet grouting, or fixed jet grouting drilling techniques can be done as well; This engineering driller can be applied in tunnels Pipe shed support, rock and soil anchoring, blasting holes, embankments,s and dam reinforcement, drilling hole for geothermal energy, hydrological wells, foundation pile construction and geological disaster treatment and other engineering fields.

Note: The user can choose diesel engine power, electric motor power, or diesel engine power/motor dual power.

Technical Data:

Main Features:

1. Multi-directional luffing mechanism, the drilling rig can perform multi-row and multi-angle drilling in one position.

2. Large rotating torque and long feed stroke, drilling efficiency is improved.

3. The crawler has a self-propelled function, equipped with a frame rotation device, which is convenient and fast for moving and accurate hole alignment.

4. Equipped with hydraulic clamp and shackle device to shorten installing and replacing time and reduce labor intensity.

5. Imported main components of the hydraulic system are stable, reliable, and long service life.

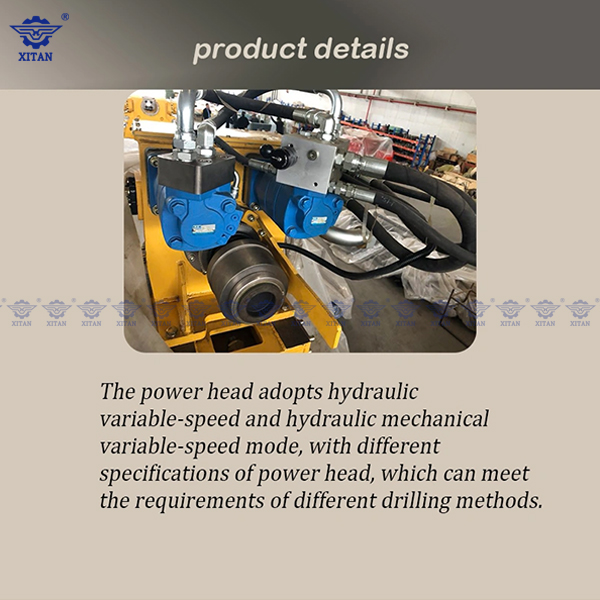

6. The power head adopts hydromechanical variable transmission. When equipped with different power heads, it meets the requirements of different drilling techniques.

7. With the direct-acting load feedback and fine-tuning variable hydraulic system, the power changes with the load, high efficiency, and low energy consumption.

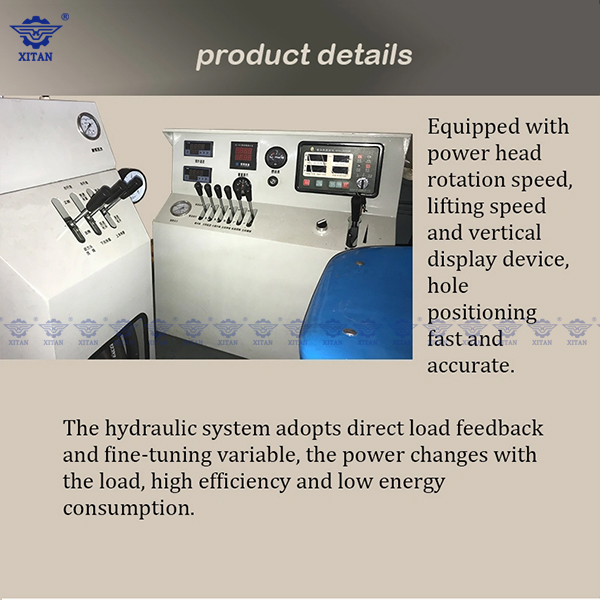

8. Equipped with a display device that shows power head rotation speed, lifting speed and perpendicularity column, fast and accurate hole positioning.

  Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. Altogether 12 categories of products based on jet grouting technology are widely applied in ground improvement and modification with excellent performance.

   We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m². 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation. Through continuous research of advanced grouting technology such as dual high-pressure RJP and multi-tube jet grouting, have occupied the high-end technology in jet grouting engineering equipment field in China and reached international standards. 6 patents about jet grouting drilling rigs had been obtained. Recently developed the first XPS-15 horizontal jet grouting drilling rig for tunneling in China with absolute advantages, it was praised by many experts.

  Kinds of geotechnical drilling rigs for soft foundation, a professional mechanical engineer team, and 24 hours feedback services will best meet and fulfill your needs. If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with you.
