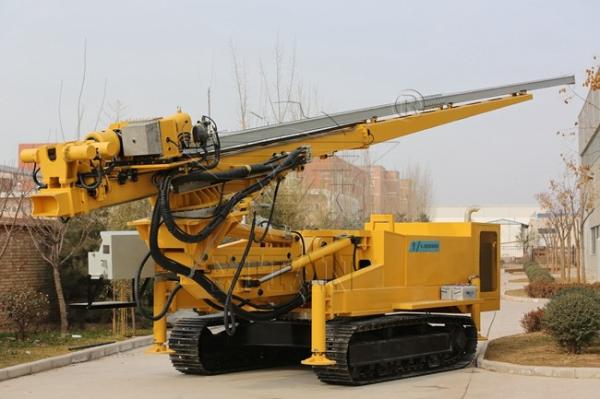

XL-3 Crawler Hydraulic Construction Anchor Drilling Rig

Description:

XL-3 Crawler Hydraulic Construction Anchor Drilling Rig is suitable for different requirements such as high-pressure jet grouting, jet grouting anchor cable, rock bolt supporting, single-tube, double-tube, and triple-tube spraying (swing spraying, fixed spraying, intermittent lifting), spraying anchor rope. And it is also applied to cemented carbide rotary drilling, screw drilling, pneumatic down-the-hole hammer drilling, pneumatic (DTH) hammer drilling with simultaneous casing tool (following pipe), engineering exploration, and other drilling techniques.

Technical Data:

Application:

Applicable to different construction the railways, highways, bridges, dam foundations, and various industrial and civil building foundation treatment and reinforcement of jet grouting construction; Anchorage engineering of foundation pit support; Matching with air compressor and pneumatic DTH hammer, it can be used for pipe drilling, general rotary spraying (swing spraying, fixed spraying) engineering construction, but also for shallow hole drilling and engineering survey drilling and other engineering construction.

Drilling Rig Advantage:

1. Multi-directional luffing mechanism, the drilling rig can realize multi-row and multi-angle drilling in one position, with strong adaptability.

2. Large rotation torque and long travel distance can effectively improve drilling efficiency.

3. It’s convenient and quick to move that the drilling rig has a self-traveling function, with a 360° slewing device.

4. Shorten the time of drilling up and down and reduce the labor intensity, the holes are equipped with hydraulic clamps and shackle devices.

5. The handles are reasonably arranged with flexible and convenient control, and equipped with a dynamic parameter display control system (patented technology), which can control various parameters such as the engine speed, oil temperature, water temperature, hydraulic system pressure, mud pump pressure, drilling depth, hole bottom pressure in time, easy to control drilling.

6. Saving the time of changing the drill pipe and improving the drilling efficiency, 12 m height of the mast can handle 16m standing rob, and the drill rob centralizer is added to facilitate the lifting of the drill tool.

7. The speed change of the power head adopts the combination of variable hydraulic motor and gearbox, the speed range is wide and reasonable, and the drilling rig has strong applicability to the stratum and different drilling processes.

8. The upper and lower hydraulic chucks adopt butterfly springs, which are clamping tightly, increasing stroke after loosening, and have the function of automatic slip wear compensation, which effectively improves the life of the spring and slips.

9. The main components of the hydraulic system of the drilling rig are imported well-known brands, and the general components are selected from domestic well-known brands. The system is stable and safe for long service life.

10. Adopting direct-acting load feedback fine-tuning variable hydraulic system, power changes automatically with bearing load, high efficiency, low energy consumption.

11. The handles are arranged for flexible and convenient control and equipped with digital instruments, which show the engine speed, oil temperature, water temperature, hydraulic system pressure, and different parameters in time. It facilitates the control of drilling.

  Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. Altogether 12 categories of products based on jet grouting technology are widely applied in ground improvement and modification with excellent performance.

   We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m². 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation. Through continuous research of advanced grouting technology such as dual high-pressure RJP and multi-tube jet grouting, have occupied the high-end technology in jet grouting engineering equipment field in China and reached international standards. 6 patents about jet grouting drilling rigs had been obtained. Recently developed the first XPS-15 horizontal jet grouting drilling rig for tunneling in China with absolute advantages, it was praised by many experts.

  Kinds of geotechnical drilling rigs for soft foundation, a professional mechanical engineer team, and 24 hours feedback services will best meet and fulfill your needs. If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with you.
