    XY-44 1400m Coring Minning Engineering Drilling Rig

    Ask Lasest Price
    Brand Name : Xitan equipment
    Model Number : XY-44B
    Certification : CE;ISO9001:2015
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 100set Per Year
    Delivery Time : 30-90days
    • Product Details
    • Company Profile

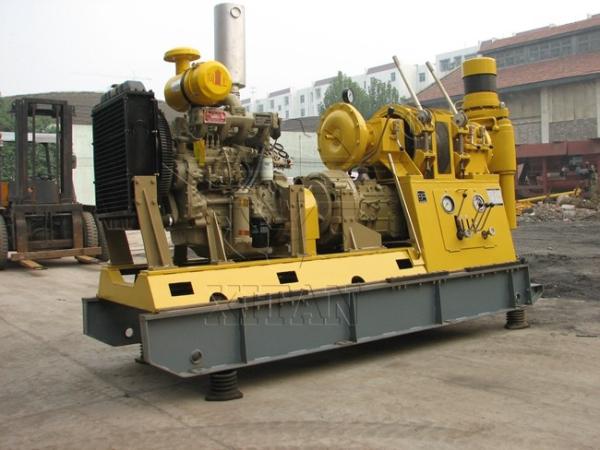

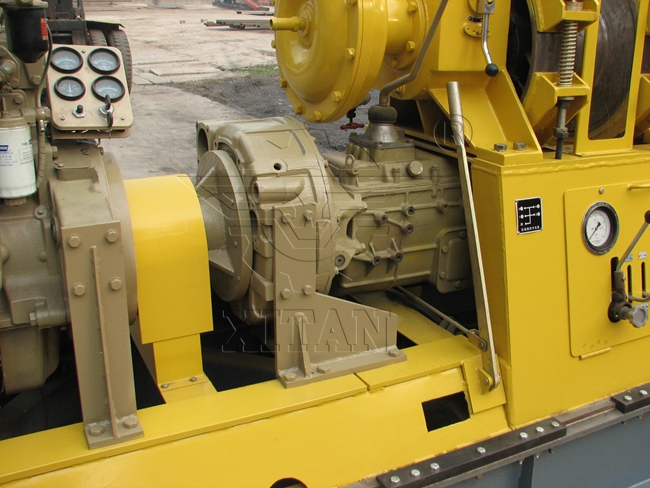

    XY-44 1400m Coring Minning Engineering Drilling Rig

    XY-44B 1400m Coring Minning Engineering Drilling Rig


    Construction application of Coring Minning Engineering Drilling Rig

    XY-44B core drilling rig adopts the rotary drilling push to push the drilling pipes into the soil, with water or cement grout injection, it can continuously and quickly take out the columnar soil and rock core samples at a specific depth without external interference.


    Application of Coring Engineering Drilling Rig XY-44B

    Geological exploration

    Foundation inspection

    Environmental survey

    Engineering investigation

    Hydrological wells drilling

    Shallow oil or gas drilling

    Geothermal drilling

    Large-diameter cement pile for foundation construction.


    Rob Dia.Φ42mmΦ50mmΦ60mmΦ89mm
    Drilling depth1400m1300m950m800m

    Spindle rotary speed

    Low speed forward82r/min;151r/min;243r/min;320r/min
    High speed forward265r/min;466r/min;745r/min;983r/min
    Reverse speed46r/min;143r/min
    Drilling angle0―360°
    Spindle hole diameter93mm
    Maximum torque of spindle4200N.m
    Spindle stroke600mm
    Spindle lifting capacity120kN
    Spindle maximum pressure90kN
    Rated pressure of hydraulic system8MPa
    Maximum lifting force of single rope of winch45kN
    Drilling rig movement stroke460mm
    Electric motorY225S-4,37kW
    diesel engineR4105ZD1,52kW
    Dimensions (length × width × height))3200mm×1100mm×1950mm
    Drilling rig weight (not including power machine)2200kg


    Specification
