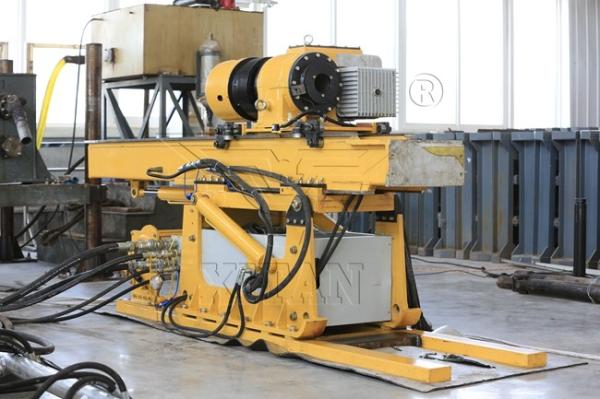

XDQ-1200 Hydraulic Wireline PDC Carbide Drill NQ 800 M Core
Drilling Rig
Condition : New
Drill Hole Diameter : As Specification
Drill Hole Depth : BQ 1200 M, NQ 800 M, HQ 600 M
Drill Bits : PDC Or Carbide Drill Bits
Voltage : 380V
After-Sales Service Provided : Engineers Available To Service
Machinery Overseas
Constructions : Geological Exploration, Wells For Hydrology,
Shallow Oil And Gas
Core Drilling : Wireline Core Drilling
Purpose
The XDQ-1200 full hydraulic core drilling rig is specially designed
for medium deep hole coring drilling in mountainous and hilly
areas, which is self-developed according to the technological
characteristics of rope coring after compared advantages and
disadvantages of the same equipment from the different companies.
It’s disassembled for easy movement. The machine is mainly equipped
with PDC and carbide drill bits. It can be used in construction
fields such as geology, survey, wells for hydrology, shallow oil
and gas, ect.
Features
1. Modular design, single module is not more than 200 kg, easy to
move.
2. Constant pressure drilling control system (patented technology),
automatically set constant pressure drilling, improve drilling
efficiency and ensure the quality of the hole.
3. Powerful dynamic parameter display control system (patented
technology).
4. The main components of the hydraulic system adopts imported
brands. It is stable, reliable and has a long service life.
5. The power head adopts electro-hydraulic system, which is
equipped with a 4-speed gearbox and variable speed transmission
within a certain range.
6. Adopting direct-acting and load feedback fine-tuning variable
hydraulic system, it is high efficiency, low energy consumption
that the power changes by the load, (this system has been
successfully applied on various series of drilling rigs in our
factory);
7. Convenient control of drilling rig , The control handles are
reasonably arranged for flexible and convenient operation. Powerful
dynamic parameter display control system (patented technology) can
timely control the speed of engine, fuel and water temperature, the
pressure of hydraulic system, grouting pump pressure, drilling
depth, hole bottom pressure and various parameters.
Main Parameter
| Power Head | Maximum diameterФ94 mm |
| Gear | Rotary speed | Torque |
| 1 | 0～97r/min | 4333 Nm |
| 2 | 0～330r/min | 1282 Nm |
| 3 | 0～552r/min | 766 Nm |
| 4 | 0～981r/min | 431 Nm |
| Hydraulic chuck | Hydraulic on after spring clip clamping |
| Chunking power:392 kN |
| Max stroke of power head | 1700 mm |
| Maximum lifting force of power head | 120 kN |
| Power head allows pressure | 60 kN |
| Drill depth of per drill pipe | BQ 1200 m | NQ 800 m | HQ 600 m |
| Drilling angle | 0～ 90° |
| Power head slowly rises and falls | Automatically set constant pressure drilling |
| Fast lifting of power head | Fast-Slow Variable speed |
| Electric motor | 22KW×3 |
| Main winch | Pull force of hollow:76 kN |
| Speed(Hollow):50 m/min |
| Rope capacity:60 m/φ22 mm |
| Vice winch | Pull force of hollow:3.3 kN | Pull force under winch full of rope:3.3 kN |
| Speed:160 m/min | Speed(Empty wich):375 m/min |
| Rope capacity:1200m/φ5 mm |
| Arm telescopic | 400 mm |
| Height of auxiliary tower | 2.7 m |
| Dimensions | (Working)2600 mm×1000 mm×6400 mm |
| (Transportation)3300 mm×1000 mm×1700 mm |
| Weight | 2900 kg |
